      J41W stainless steel globe valve

      J41W stainless steel globe valve
      • sell:021-32051999
      • sell:021-32050777
      • fax:021-66099555

      Details

      • Product Introduction
      • Service Promise
      • Ordering Process

      The stem axis of the J41W stainless steel flange valve is perpendicular to the sealing surface of the valve seat. Stem opening or closing stroke is relatively short, and has a very reliable cut-off action, making this valve is very suitable for medium cut-off or adjustment and throttling use.


      Features of stainless steel globe valves


      (1) the structure is simpler than the gate valve, and it is more convenient to manufacture and maintain.


      (2) Sealing surface is not easy to wear and scratch, good sealing, no relative sliding between disc and valve body sealing surface when opening and closing, so wear and scratch are not serious, sealing performance is good, long service life.


      (3) when the valve is opened and closed, the valve stroke is small, so the height of the cut-off valve is smaller than that of the gate valve, but the length of the valve is longer than that of the gate valve.


      (4) the opening and closing moment is large, the opening and closing is more laborious, and the opening and closing time is the headmaster.


      (5) fluid resistance is large, because the medium channel of the valve body is tortuous, the fluid resistance is large, and the power consumption is large.


      (6) When the nominal pressure PN is less than 16 MPa, the medium flows downstream from the bottom of the valve disc; when the nominal pressure PN is more than 20 MPa, the medium flows downstream from the top of the valve disc to increase the seal energy. When used, the medium of the shut-off valve can only flow in one direction, and the flow direction can not be changed.


      (7) the disc is always eroded at full opening.


      Design and manufacturing standards


      1, design and manufacture according to GB12235-89


      2, the length of the structure is GB12221-89


      3, flange size according to JB/G79-94


      4. Valve check and test according to GB13927


      Performance parameters of stainless steel cut-off valve


      型號
      公稱壓力
      試驗壓力
      工作溫度(℃)
      適用介質(zhì)
      強度(水)(Mpa)
      密封(水)空氣(Mpa)
      低壓密封空氣(Mpa)
      J41W-16P(R)
      1.6
      2.4
      1.8
      0.6
      ≤200
      NITRIC ACID
      J41W-25P(R)
      2.5
      3.8
      2.8
      0.6
      ≤200
      硝酸類
      ACETIC ACID
      醋酸類
      NITRIV ACID
      硝酸類
      J41W-40P(R)
      4
      6
      4.4
      0.6
      ≤200
      ACETIC ACID
      J41W-64P(R)
      6.4
      9.6
      7
      0.6
      ≤200
      醋酸類


      Stainless steel cut-off valve main parts material


      零件名稱
      ZG1Cr18Ni9Ti系列
      ZG00Cr18Ni10系列
      ZG1Cr18Ni12Mo2Ti系列
      ZG00Cr17Ni14Mo2系列
      WCB系列
      閥體/閥蓋
      ZG1Cr18Ni9Ti
      ZG00Cr18Ni10
      ZG1Cr18Ni12Mo2Ti
      ZG00Cr17Ni14Mo2
      WCB
      閥瓣
      ZG1Cr18Ni9Ti
      ZG00Cr18Ni10
      ZG1Cr18Ni12Mo2Ti
      ZG00Cr17Ni14Mo2
      1Cr13
      閥桿
      ZG1Cr18Ni9Ti
      00Cr18Ni10
      1Cr18Ni12Mo2Ti
      00Cr17Ni14Mo2
      1Cr13
      填料
      PTFE編織
      PTFE編織
      PTFE編織
      PTFE編織
      石墨
      墊片
      304+PTFE
      304L+PTFE
      316+PTFE
      316L+PTFE
      石墨+304
      壓蓋
      ZG1Cr18Ni9Ti
      ZG00Cr18Ni10
      ZG1Cr18Ni12Mo2Ti
      ZG00Cr17Ni14Mo2
      WCB
      填料壓環(huán)
      1Cr18Ni9Ti
      00Cr18Ni10
      1Cr18Ni12Mo2Ti
      00Cr17Ni14Mo2
      1Cr13
      螺栓
      1Cr17Ni2
      1Cr17Ni2
      1Cr17Ni2
      1Cr17Ni2
      35CrMoA
      螺母
      1Cr18Ni9Ti
      1Cr18Ni9Ti
      1Cr18Ni9Ti
      1Cr18Ni9Ti
      45

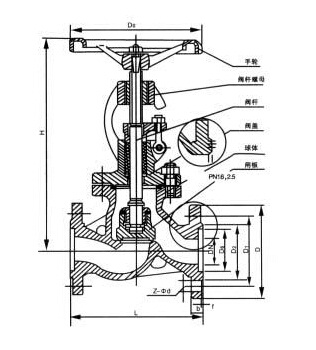

      Main dimensions of stainless steel globe valves


      J41W stainless steel globe valve -1.6MPa


      尺寸
      DN
      15
      20
      25
      32
      40
      50
      65
      80
      100
      125
      150
      200
      250
      300
      350
      400
      L
      mm
      130
      150
      160
      180
      200
      230
      290
      310
      350
      400
      480
      600
      650
      750
      850
      950
      H
      mm
      200
      243
      253
      280
      312
      321
      325
      355
      415
      460
      510
      700
      975
      1115
      1250
      1380
      W
      mm
      120
      140
      160
      160
      200
      200
      240
      240
      280
      320
      360
      560
      600
      700
      800
      900
      重量
      kg
      5
      6.5
      7
      13.5
      16
      32
      45
      60
      80
      107
      134
      268
      449
      663
      750
      1170


      J41W stainless steel globe valve -2.5MPa


      尺寸
      DN
      15
      20
      25
      32
      40
      50
      65
      80
      100
      125
      150
      200
      250
      300
      350
      400
      L
      mm
      130
      150
      160
      180
      200
      230
      290
      310
      350
      400
      480
      600
      650
      750
      850
      950
      H
      mm
      200
      243
      253
      280
      312
      321
      325
      355
      415
      460
      510
      700
      975
      1115
      1250
      1380
      W
      mm
      120
      140
      160
      160
      200
      200
      240
      240
      280
      320
      360
      560
      600
      700
      800
      900
      重量
      kg
      5
      6.5
      7
      13.5
      16
      32
      45
      60
      80
      107
      134
      268
      449
      663
      750
      1170


      J41W stainless steel globe valve -4.0MPa


      尺寸
      DN
      15
      20
      25
      32
      40
      50
      65
      80
      100
      125
      150
      200
      250
      300
      350
      400
      L
      mm
      130
      150
      160
      180
      200
      230
      290
      310
      350
      400
      480
      600
      650
      750
      850
      950
      H
      mm
      200
      243
      253
      280
      312
      321
      325
      355
      415
      460
      510
      700
      975
      1115
      1250
      1380
      W
      mm
      120
      140
      160
      160
      200
      200
      240
      240
      280
      320
      360
      560
      600
      700
      800
      900
      重量
      kg
      5
      6.5
      7
      13.5
      16
      32
      45
      60
      80
      107
      134
      268
      491
      705
      850
      1234


      The best quality, first-class service Qigao creates more value for you!

      "Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

      Product Standards:

      Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

      pre-sale service:

      Product introduction, technical exchange, non-standard product design, troubleshooting。

      Sale service:

      A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

      After sales service:

      1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

      2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

      3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

      4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

      1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

      a、Structure length;

      b、Connection Type;

      c、Nominal diameter, full diameter, reduced diameter, pipe size;

      d、Operating medium and temperature, pressure range;

      e、Tests, inspection standards and other requirements

      2、The factory can configure various types of driving devices according to customer's specific requirements.。

      3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

      4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



      Order Process:

      1、Customer purchase list fax to021-33872143,Or call us 021-33872141

      2、Receive customer purchase list, provide valve model selection and quotation (price list)。

      3、Specific agreement: delivery date, special requirements, etc.。
