      WJ44H German standard right angle BELLOWS GLOBE VALVE

      WJ44H German standard right angle BELLOWS GLOBE VALVE
      • sell:021-32051999
      • sell:021-32050777
      • fax:021-66099555

      Details

      • Product Introduction
      • Service Promise
      • Ordering Process

      WJ44H German standard right-angle bellows globe valve is suitable for cutting off or connecting pipeline medium in various working conditions of petroleum, chemical, pharmaceutical, chemical fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-350 C.


      Structural characteristics of German standard right angle BELLOWS GLOBE VALVE


      1. The product is reasonable in structure, reliable in sealing, excellent in performance and beautiful in appearance.


      2, sealing surface hardfacing Co based cemented carbide, wear resistance, corrosion resistance, good friction resistance, long service life.


      3. The quenching and tempering of the valve stem and surface nitriding have good corrosion resistance and friction resistance.


      4, double seal, more reliable performance.


      5. The position of the stem is more direct.


      6. Material of parts, flange and butt weld numbering dimensions can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.


      Specification for German standard right angle BELLOWS GLOBE VALVES


      結構形式
      BB-BG-OS & Y
      驅動方式
      手動
      電動
      設計標準
      DIN3356
      結構長度
      DIN3202
      連接法蘭
      DIN2543-2545
      試驗和檢驗
      DIN3230


      Performance Specification for German standard right angle BELLOWS GLOBE VALVES


      公稱壓力(MPa)
      殼體試驗壓力(MPa)
      密封試驗壓力(MPa)
      適用溫度(℃)
      使用介質(zhì)
      1.6
      2.4
      1.76
      ≤350℃
      水、蒸汽、油品等
      2.5
      3.75
      2.75
      4.0
      6.0
      4.4
      6.4
      9.6
      7.04

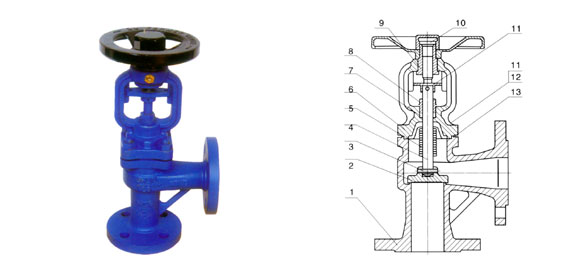

      German standard right angle bellows globe valve main parts material
      序號
      名稱
      材質(zhì)
      1
      閥體
      GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
      2
      閥瓣
      ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
      3
      軸銷
      ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
      4
      閥桿
      ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
      5
      波紋管組件
      1Cr18Ni9Ti、304、316
      6
      閥蓋
      GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
      7
      填料
      柔性石墨
      8
      填料壓蓋
      GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
      9
      閥桿螺母
      WCB、QT400-18
      10
      手輪
      銅合金
      11
      雙頭螺栓
      ASTM A193-B7、A320-B8、A193-B8M
      12
      六角螺母
      ASTM A194-2H、A194-8、A194-8M
      13
      墊片
      柔性石墨+不銹鋼

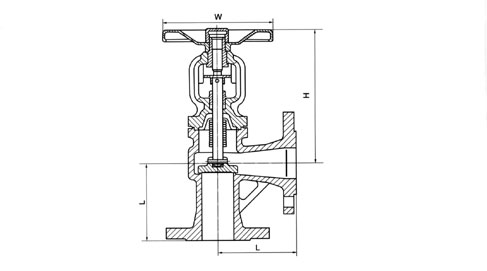

      Main dimensions of German standard right angle BELLOWS GLOBE VALVES
      型號
      WJ44H-16
      壓力等級
      PN16
      口徑
      15
      20
      25
      32
      40
      50
      65
      80
      100
      125
      150
      200
      250
      300
      350
      L
      130
      150
      160
      180
      200
      230
      290
      310
      350
      400
      480
      600
      730
      850
      980
      H
      166
      166
      172
      175
      193
      195
      213
      227
      294
      325
      355
      440
      580
      620
      785
      W
      120
      140
      140
      180
      200
      220
      260
      280
      300
      340
      400
      450
      450
      500
      500
      重量(kg)
      4
      5
      6
      10
      13
      18
      25
      30
      40
      50
      100
      180
      300
      450
      670
      型號
      WJ44H-25
      壓力等級
      PN25
      口徑
      15
      20
      25
      32
      40
      50
      65
      80
      100
      125
      150
      200
      250
      300
      350
      L
      130
      150
      160
      180
      200
      230
      290
      310
      350
      400
      480
      600
      730
      850
      980
      H
      166
      166
      172
      175
      193
      195
      213
      227
      294
      325
      355
      440
      580
      620
      785
      W
      120
      140
      140
      180
      200
      220
      260
      280
      300
      340
      400
      450
      450
      500
      500
      重量(kg)
      4
      5
      6
      11
      14
      19
      27
      32
      43
      53
      110
      200
      330
      480
      700
      型號
      WJ44H-40
      壓力等級
      PN40
      口徑
      15
      20
      25
      32
      40
      50
      65
      80
      100
      125
      150
      200
      250
      300
      350
      L
      130
      150
      160
      180
      200
      230
      290
      310
      350
      400
      480
      600
      730
      850
      980
      H
      166
      166
      172
      175
      193
      195
      213
      227
      294
      325
      355
      440
      580
      620
      785
      W
      120
      140
      140
      180
      200
      220
      260
      280
      300
      340
      400
      450
      450
      500
      500
      重量(kg)
      4
      5
      6
      11
      14
      20
      28
      33
      45
      55
      120
      210
      350
      500
      730
