      U filter

      U filter
      • sell:021-32051999
      • sell:021-32050777
      • fax:021-66099555

      Details

      • Product Introduction
      • Service Promise
      • Ordering Process

      UG filter is widely used in steam, air, water, oil and other systems pipelines, filters are to protect a variety of meters, pumps, valves, traps and other equipment.

      Type UG filter has small pressure loss, large flow area and strong resistance to dirt. Sewage is convenient.

      Main performance parameters


      型號
      公稱壓力
      工作溫度(℃)
      濾網目數
      適用介質
      UG-A
      2.0
      300
      20~150
      蒸汽、空氣、水、油
      UG-B
      5.O
      425
      20~150
      蒸汽、空氣、水、油


      Material of main parts


      UG-B型過濾器
      UG-A型過濾器
      零件名稱
      材料
      閥體
      碳鋼、不銹鋼
      濾網蓋
      碳鋼、不銹鋼
      濾芯網
      不銹鋼
      墊片
      金屬石墨

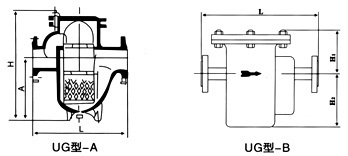

      Main dimensions of type UG-A filter


      型號
      公稱通徑(DN)
      外形尺寸
      A
      L
      H
      UG型一A
      10
      150
      80
      125
      15
      150
      80
      125
      20
      180
      100
      153
      25
      180
      100
      153
      40
      200
      155
      304
      50
      300
      155
      340
      65
      340
      220
      380
      80
      400
      250
      420
      100
      500
      295
      502
      150
      600
      335
      650
      200
      786
      395
      770


      Main dimensions of type UG-B filter


      UG型一B
      公稱通徑 (DN)
      外形尺寸 (mm)
      L
      H1
      H2
      15
      270
      90
      145
      20
      270
      90
      145
      25
      270
      90
      145
      32
      320
      125
      175
      40
      320
      125
      175
      50
      320
      125
      175
      65
      430
      140
      220
      80
      430
      140
      220
      100
      430
      140
      220
      125
      460
      160
      235
      150
      460
      170
      235
      200
      460
      190
      235


      The best quality, first-class service Qigao creates more value for you!

      "Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

      Product Standards:

      Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

      pre-sale service:

      Product introduction, technical exchange, non-standard product design, troubleshooting。

      Sale service:

      A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

      After sales service:

      1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

      2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

      3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

      4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

      1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

      a、Structure length;

      b、Connection Type;

      c、Nominal diameter, full diameter, reduced diameter, pipe size;

      d、Operating medium and temperature, pressure range;

      e、Tests, inspection standards and other requirements

      2、The factory can configure various types of driving devices according to customer's specific requirements.。

      3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

      4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



      Order Process:

      1、Customer purchase list fax to021-33872143,Or call us 021-33872141

      2、Receive customer purchase list, provide valve model selection and quotation (price list)。

      3、Specific agreement: delivery date, special requirements, etc.。

      download Google:

      1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

      a、Structure length;

      b、Connection Type;

      c、Nominal diameter, full diameter, reduced diameter, pipe size;

      d、Operating medium and temperature, pressure range;

      e、Tests, inspection standards and other requirements

      2、The factory can configure various types of driving devices according to customer's specific requirements.。

      3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

      4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

      Sale service:

      Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

      For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

      After sales service:

      1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

      2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
      In order to further improve product quality。

      3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

      4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

      statement

      1. All text, data and pictures in this article are for reference only.U filterPlease contact us at 4000-700-665 for details of performance, size and price.
      2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
